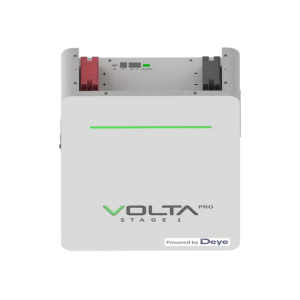

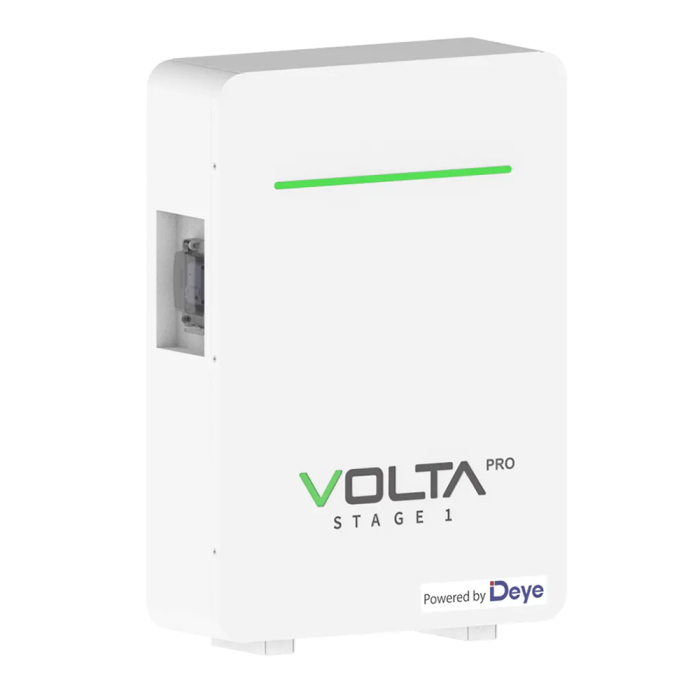

VOLTA Pro: Battery Lithium Ion STAGE 1 5.32KWH 51.2V 104AH

Product Features:

• Safer: Cobalt Free Lithium Iron Phosphate (LFP) Battery, safety and long lifespan and high-energy density. Low Voltage safety connection.
• High performance: Support 1C/1C continual charge and discharge. 6000 cycles at 90% DOD, and 10 years standard warranty
• Reliable: Built-in Intelligent BMS, providing complete protection. Natural cooling, IP20, wide temperature range: -20℃ to 60℃
• Flexible: Modular design, easy to expand, Max. 32 units in parallel, Max. capacity of 170kWh. Suited to residential and commercial applications for increasing the self-consumption ratio.
• Convenient: Battery module auto networking, easy maintenance, support Deye remotely monitoring and upgrade, support USB drive upgrade the firmware.
• Eco-Friendly: Use environmental protection materials, the whole module is non-toxic, and pollution-free.
• Two Mounting Methods: Flat design, Wall-mounted with Wall Bracket, Floor Stand with removable base, saving installation space.

Specifications:

• Nominal Energy (kWh): 5.32
• Nominal Voltage (V): 51.2
• Capacity (Ah): 104
• Battery Chemistry: LiFePO4
• Operating Voltage(V): 43.2~57.6
• Recommend Depth of Discharge: 90%
• Usable Energy (kWh): 4.79
• Charge/Discharge Current (A):
  • Recommend 50
  • Max. 100
  • Peak 150 (2mins, 25℃)
• Scalability: Max. 32 pcs pack (Max.170kWh) in parallel
• Cycle Life: ≥6000(25℃±2℃, 0.5C/1C, 90%DOD, 70%EOL)
• Dimension (W/H/D, mm): 440*620*150
• Weight Approximate(kg): 46
• Warranty Period: 10 years

NOTE: This Unit can only be used with Deye / Sunsynk Inverters
