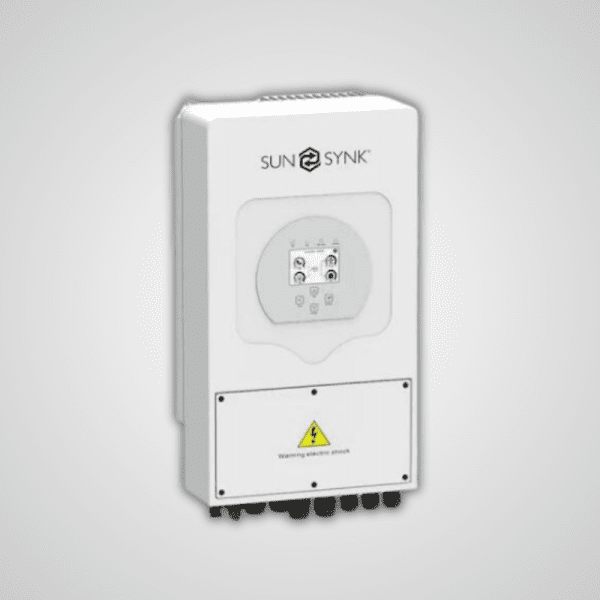

SUNSYNK 5KW HYBRID INVERTER

Introducing the SUNSYNK 5KW Hybrid Inverter – a revolutionary solution designed to transform the way you harness and manage solar power. With advanced technology and a focus on efficiency, user-friendliness, reliability, and intelligence, SUNSYNK is the key to unlocking the full potential of your solar energy system.

Unlock Greater Yields and Savings:

SUNSYNK’s innovative design enhances your self-consumption ratio, reducing your electricity bills by up to 80%. Its DC/AC ratio of up to 1.3 makes it perfectly suitable for double-sided PV modules, ensuring that you get the most out of your solar panels. With a remarkable maximum efficiency of 97.6%, you can be confident in the optimal performance of your solar setup.

User-Friendly Interface:

Experience ease and convenience with SUNSYNK’s LCD touchscreen and button controls, providing straightforward operation. Whether you prefer lithium-ion or lead-acid batteries, SUNSYNK accommodates both. Keep tabs on your system with web browser and mobile app monitoring capabilities.

Reliable Performance:

Rest easy knowing your system is protected with features like PV lighting protection, anti-islanding protection, and leakage current protection. SUNSYNK can also store energy from a DG when needed, ensuring uninterrupted operation around the clock. Its IP65 protection degree means it can handle both indoor and outdoor use, and it can automatically switch from on-grid to off-grid mode within just 5 milliseconds. With a zero-export function, it reacts swiftly within 200 milliseconds when zero export is needed.

Smart and Versatile:

Customize your energy system with programmable charging and discharging schedules. SUNSYNK can handle both wind turbines and solar panels as DC input power sources. Need more power? Connect up to 16 units in parallel for higher system power. You can even retrofit your existing solar system into an energy storage system with ease.

Battery and PV Input Data:

• Battery Type: Lead-acid or Li-lon
• Battery Voltage Range (V): 40-60V
• Max. Charging Current (A): 120A
• Max. Discharging Current (A): 120A
• Charging curve: 3 Stages/Equalization
• External Temperature Sensor: Optional
• Charging Strategy for Lithium Battery: Self-adaption to BMS

AC Output Data:

• Rated AC Output and UPS Power (W): 5000W
• Max AC Output Power (W): 5500W
• Peak Power (off-grid): 2 times of rated power, 10 seconds
• AC Output Rated Current (A): 21.7.4A
• Max. AC Current (A): 25A
• Max Continuous AC Pass-through (A): 35A
• Output Frequency and Voltage: 50Hz; 240Vac
• Grid Type: THD<3% (Linear load<1.5%)
• Current Harmonic Distortion: THD<3% (Linear load<1.5%)

High Efficiency and Protection:

• Max. Efficiency: 97.60%
• Euro Efficiency: 96.50%
• MPPT Efficiency: 99.90%
• Multiple protection features ensure the safety and longevity of your system.

Certifications and Standards:

SUNSYNK is compliant with various grid regulations and safety standards, including UL1741, IEEE1547, VDE0126, and more. It adheres to safety regulations like IEC62109-1 and IEC62109-2 and meets EMC requirements.

General Data:

• Operating Temperature Range (°C): -25—60°C, >45°C Derating
• Cooling: Fan
• Noise (dB): <30
• Communication with BMS: RS485; CAN
• Weight (kg): 20.5
• Size (mm): 580 x 330 x 208mm
• Protection Degree: IP65
• Installation Style: Wall-mounted
• Warranty: 5 years

Invest in the future of solar energy management with SUNSYNK. Enhance your energy self-sufficiency, save on electricity costs, and embrace a more sustainable lifestyle. With its user-friendly interface, reliability, versatility, and exceptional efficiency, SUNSYNK is your gateway to a greener and smarter energy future. Don’t miss out on the opportunity to revolutionize your energy system – choose SUNSYNK today.
