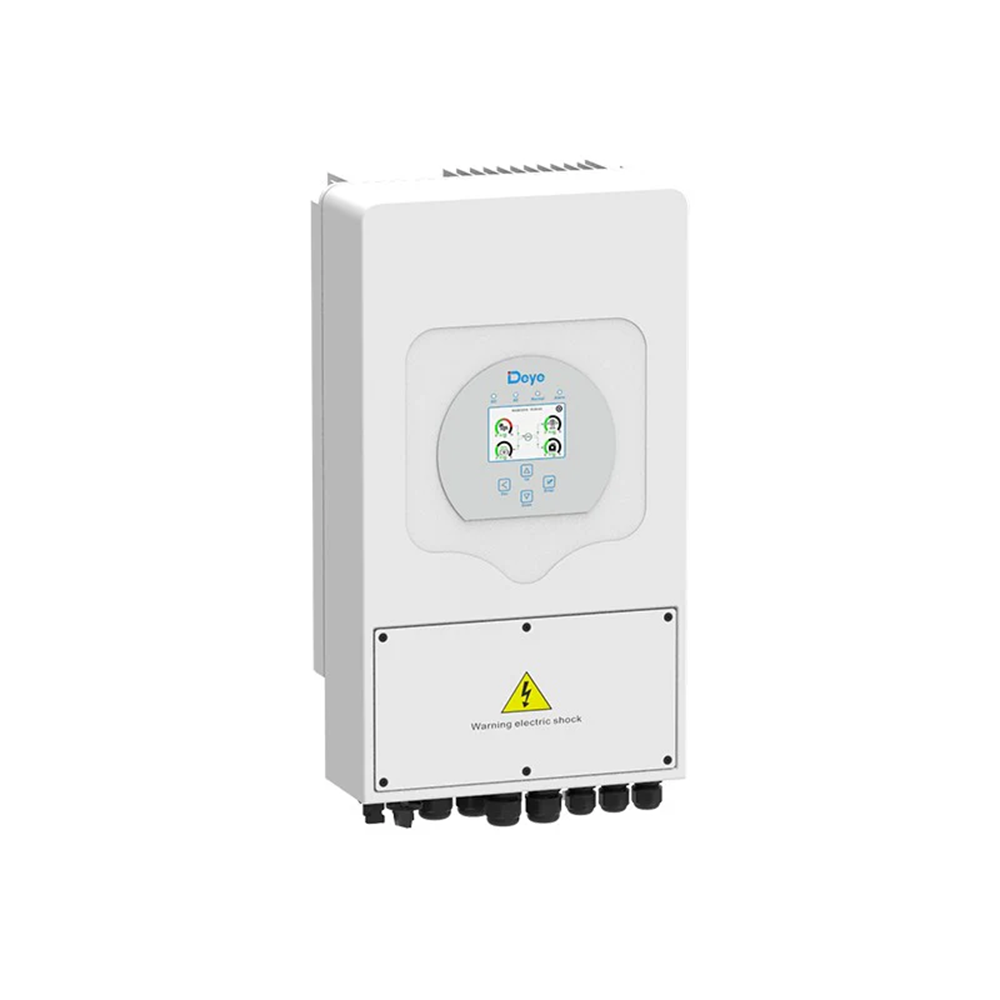

DEYE 5KW HYBRID INVERTER

Empower Your Energy Future with the Deye 5kW Hybrid Inverter

Welcome to the future of energy management with the Deye 5kW Hybrid Inverter. Packed with cutting-edge technology and user-friendly features, the Deye inverter is your gateway to a more efficient, reliable, and sustainable energy system. Whether you’re looking to reduce your electricity bills, enhance your self-consumption of solar power, or ensure uninterrupted power during outages, the Deye inverter has you covered.

DEYE 5kw Key Features:

High Yields: The Deye 5kw inverter boasts an impressive self-consumption ratio of up to 80%, helping you reduce your electricity bills. With a DC/AC ratio of up to 1.3, it’s perfectly suited for double-sided PV modulars, maximizing your energy production. Two MPPT designs ensure a maximum efficiency of 97.6%.

User-Friendly: Enjoy a hassle-free experience with the Deye 5kw inverter’s LCD touchscreen and buttons, making operation a breeze. It’s compatible with both lithium-ion and lead-acid batteries and supports web browser and mobile app monitoring for easy access to your system’s performance data.

Reliable: Safety is paramount with features like PV lightning protection, anti-islanding protection, leakage current protection, and more. The Deye inverter can store energy from a diesel generator when needed, ensuring 24/7 operation. With an IP65 protection degree, it’s suitable for both indoor and outdoor use. It can also automatically switch from on-grid to off-grid mode within 5ms and offers a zero-export function with rapid response.

Smart: Take control of your energy system with programmable charging and discharging schedules. You can even connect both wind turbines and solar panels as DC input power. If you need more power, the Deye inverter allows you to parallel up to 16 units for a higher system capacity. It’s also capable of retrofitting existing solar systems into energy storage systems.

Battery Input Data:

• Battery Type: Lead-acid or Lithium-ion
• Battery Voltage Range (V): 40-60V
• Max. Charging Current (A): 120A
• Max. Discharging Current (A): 120A
• Charging Curve: 3 Stages/Equalization
• External Temperature Sensor: Optional
• Charging Strategy for Lithium Battery: Self-adaptation to BMS

PV String Input Data:

• Max. DC Input Power (W): 6500W
• PV Input Voltage (V): 370V (100V-500V)
• MPPT Range (V): 125-425V
• Start-up Voltage (V): 150V
• PV Input Current (A): 11A + 11A
• No. of MPPT Trackers: 2
• No. of Strings Per MPPT Tracker: 1+1

AC Output Data:

• Rated AC Output and UPS Power (W): 5000W
• Max AC Output Power (W): 5500W
• Peak Power (off-grid): 2 times of rated power, 10 seconds
• AC Output Rated Current(A): 21.7.4A
• Max.AC Current(A): 25A
• Max Continuous AC Pass-through(A): 35A
• Output Frequency and Voltage: 50Hz; 240Vac
• Grid Type: THD<3% (Linear load<1.5%)
• Current Harmonic Distortion: THD<3% (Linear load<1.5%)

Efficiency:

• Max. Efficiency: 97.60%
• Euro Efficiency: 96.50%
• MPPT Efficiency: 99.90%

Protection:

Deye 5kw inverter is equipped with multiple protection features, including PV arc fault detection, PV input lightning protection, anti-islanding protection, PV string input reverse polarity protection, insulation resistor detection, residual current monitoring unit, output over current protection, output shorted protection, and output over voltage protection.

Certifications and Standards:

• Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
• Safety Regulation: IEC62109-1, IEC62109-2
• EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B

General Data:

• Operating Temperature Range (C): -25—60 C, >45 C Derating
• Cooling: Fan
• Noise (dB): <30
• Communication with BMS: RS485; CAN
• Weight (kg): 20.5
• Size (mm): 580 X 330 X 208mm
• Protection Degree: IP65
• Installation Style: Wall-mounted
• Warranty: 5 years

Experience the future of energy management with the Deye 5kW Hybrid Inverter. Upgrade your energy system to be more efficient, reliable, and eco-friendly. Whether you’re a homeowner looking to reduce your electricity bills or a business aiming for uninterrupted power, Deye has the advanced features and protection you need. Don’t wait—transform your energy future with Deye today!
