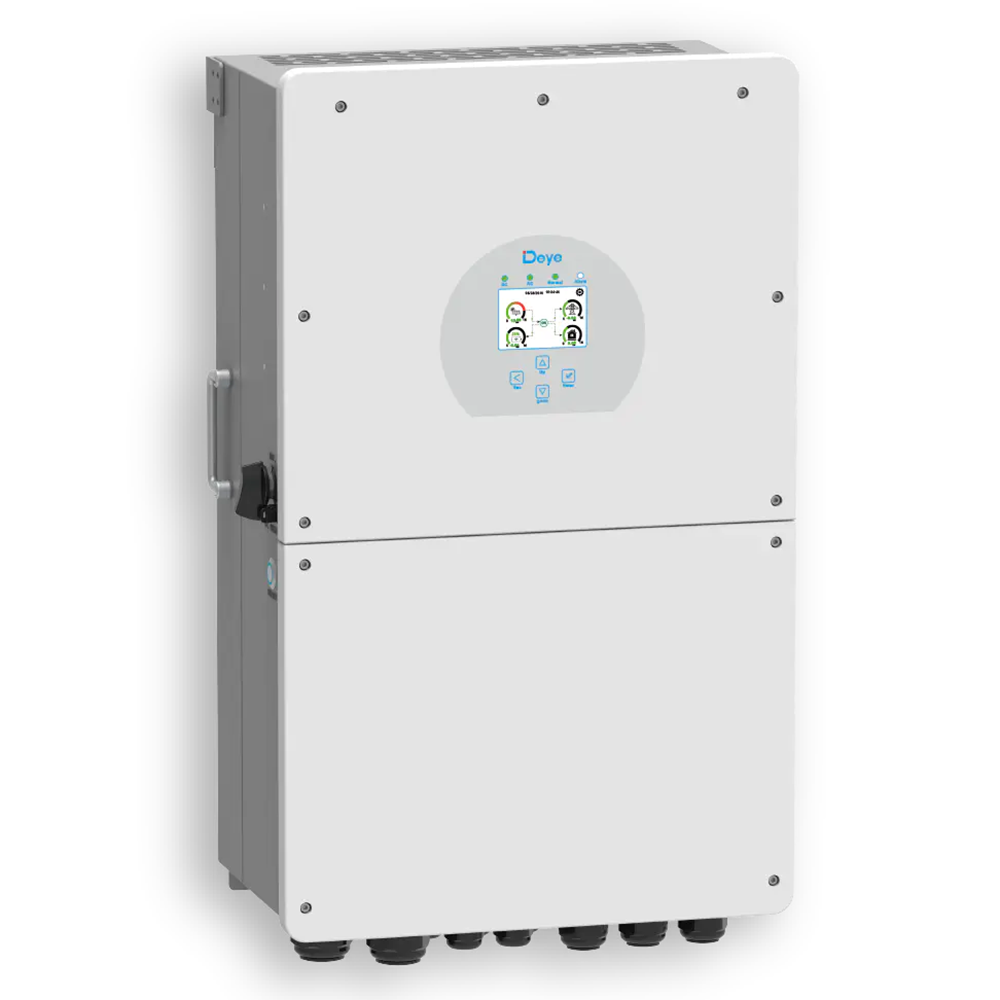

Elevate Your Energy Management with the Deye 3 Phase Inverter 12kW
The Deye 3 Phase Inverter 12kW is a game-changer in the world of energy management. Designed to deliver unparalleled efficiency, this three-phase inverter is equally suitable for both residential and commercial settings, making it the ultimate choice for those seeking to optimize energy consumption, reduce electricity bills, and ensure reliable power supply.
Key Features:
Maximized Yields: With the Deye 3 Phase Inverter 12kW, you can significantly improve self-consumption ratios, potentially reducing electricity bills by up to 80%. Its DC/AC ratio of up to 1.3 makes it perfect for double-sided PV modules. Featuring a dual MPPT design, this inverter achieves a remarkable maximum efficiency of 97.6%.
User-Friendly: Taking control of your energy has never been easier. The inverter is equipped with a user-friendly LCD touchscreen and buttons, ensuring smooth operation. It’s compatible with both lithium-ion and lead-acid batteries, and you can conveniently monitor and manage your system through web browser and mobile app support.
Reliability First: Safety is a top priority, and the Deye 3 Phase Inverter doesn’t disappoint. It comes with PV lighting protection, anti-islanding protection, leakage current protection, and more. Notably, it can store energy from a diesel generator when needed, ensuring uninterrupted operation around the clock. With its IP65 protection degree, it’s equally suitable for indoor and outdoor use. The inverter also features automatic switching from on-grid to off-grid mode within a mere 5ms and includes a zero-export function for a rapid response.
Smart Energy Management: Customize your energy management with programmable charging and discharging schedules. The inverter accommodates both wind turbines and solar panels as DC input power. For those seeking more power, you can parallel up to 16 units for a higher system capacity. It’s also designed for retrofitting existing solar systems into energy storage systems.
Advanced 3-Phase Design: The Deye 3 Phase Inverter offers a unique 100% unbalanced output, with each phase capable of delivering up to 50% of the rated power. Featuring a 48V low-voltage battery and transformer isolation design, this inverter provides versatile performance. You can take advantage of six time periods for battery charging and discharging, with a maximum charging/discharging current of 240A.
Battery Input Data:
- Battery Type: Lead-acid or Lithium-ion
- Battery Voltage Range (V): 40-60V
- Max. Charging Current (A): 240A
- Max. Discharging Current (A): 240A
- Charging curve: 3 Stages/Equalization
- External Temperature Sensor: Optional
- Charging Strategy for Lithium Battery: Self-adaptation to Battery Management System (BMS)
PV String Input Data:
- Max. DC Input Power (W): 15,600W
- PV input Voltage (V): 550V (150V-800V)
- MPPT Range (V): 200-650V
- Start-up Voltage (V): 160V
- PV Input Current (A): 25A + 125.5A
- No. of MPPT Trackers: 2
- No. of Strings Per MPPT Tracker: 2+1
AC Output Data:
- Rated AC Output and UPS Power (W): 12,000W
- Max AC Output Power (W): 13,200W
- Peak Power (off-grid): 2 times the rated power, for 10 seconds
- AC Output Rated Current (A): 18A
- Max AC Current (A): 27A
- Max Continuous AC Pass-through (A): 50A
- Output Frequency and Voltage: 50/60Hz; 230/400Vac (Three Phase)
- Grid Type: Three Phase
- Current Harmonic Distortion: THD<3% (Linear load<1.5%)
Efficiency:
- Max. Efficiency: 97.60%
- Euro Efficiency: 97.00%
- MPPT Efficiency: 99.90%
Protection:
Safety is paramount with integrated features such as PV arc fault detection, PV input lightning protection, anti-islanding protection, PV string input reverse polarity protection, insulation resistor detection, residual current monitoring unit, output over current protection, output shorted protection, and output over voltage protection.
Certifications and Standards:
- Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
- Safety Regulation: IEC62109-1, IEC62109-2
- EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B
General Data:
- Operating Temperature Range (°C): -25—60°C, >45°C Derating
- Cooling: Fan
- Noise (dB): <30
- Communication with Battery Management System (BMS): RS485; CAN
- Weight (kg): 37
- Size (mm): 422W X 685H X 281mm
- Protection Degree: IP65
- Installation Style: Wall-mounted
- Warranty: 5 years
The Deye 3 Phase Inverter 12kW sets the standard for energy efficiency, user-friendliness, and reliability. Whether you’re a homeowner or business owner, this inverter ensures you get the most out of your energy system. Upgrade to Deye and elevate your energy management today!
